Battery for TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U
Compatible Car Batteries for TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U
Model years: since 08.2001. Car body type: Flatbed / Chassis
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY22, KDY23, KDY25, KDY26) | since 09.2006 |
12.05” x 6.81” x 8.86” 306 x 173 x 225 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 278 x 175 x 175 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d (XZU423, XZU435, XZU427, XZU425, XZU417,... | since 10.2006 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 303 x 173 x 220 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d | since 10.2009 |
12.05” x 6.81” x 8.86” 306 x 173 x 222 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 255 x 172 x 223 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d 4WD (XZU6, XZU7, XZU4) | since 05.2011 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 303 x 173 x 220 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d (KDY220, KDY230) | since 08.2001 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 257 x 172 x 200 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d | since 08.2001 |
12.05” x 6.81” x 8.86” 306 x 173 x 225 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 257 x 172 x 200 mm |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY261, KDY251, KDY231, KDY221) | since 09.2006 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.94” x 6.89” x 6.89” 302 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY22, KDY23, KDY25, KDY26) | since 09.2006 | 830 | 720 | 590 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d (XZU423, XZU435, XZU427, XZU425, XZU417,... | since 10.2006 | 850 | 800 | 700 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d | since 10.2009 | 800 | 720 | 550 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d 4WD (XZU6, XZU7, XZU4) | since 05.2011 | 850 | 800 | 700 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d (KDY220, KDY230) | since 08.2001 | 850 | 800 | 510 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d | since 08.2001 | 830 | 800 | 510 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY261, KDY251, KDY231, KDY221) | since 09.2006 | 850 | 800 | 630 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY22, KDY23, KDY25, KDY26) | since 09.2006 | 100 | 95 | 70 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d (XZU423, XZU435, XZU427, XZU425, XZU417,... | since 10.2006 | 100 | 95 | 90 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d | since 10.2009 | 95 | 70 | 68 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 4.0 D4d 4WD (XZU6, XZU7, XZU4) | since 05.2011 | 100 | 95 | 90 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d (KDY220, KDY230) | since 08.2001 | 100 | 95 | 70 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 2.5 D4d | since 08.2001 | 100 | 95 | 70 |
| TOYOTA DYNA Flatbed / Chassis (KD, LY, Y2, U 3.0 D4d (KDY261, KDY251, KDY231, KDY221) | since 09.2006 | 100 | 95 | 90 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: DETA Battery Code: DB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: PLATINUM Battery Code: 030E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 590 A Cold Cranking Amps (CCA) DIN: 57088 A Length: 255 Width: 172 Height: 223 Post Positions: 0 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: TUDOR Battery Code: TB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: DETA Battery Code: DA955 Voltage: 12 V Battery Capacity: 95 AH Height: 222 Width: 173 Length: 306 Cold Cranking Amps (CCA): 800 A Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |

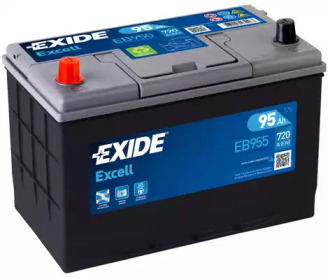

Battery Brand: EXIDE Battery Code: EB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: VMF Battery Code: 57029 Voltage: 12 V Battery Capacity: 70 AH Height: 220 Width: 175 Length: 261 Cold Cranking Amps (CCA): 550 A Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 250E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59005 A Length: 304 Width: 174 Height: 225 Post Positions: 1 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: NPS Battery Code: U540L23B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: VARTA Battery Code: 5954040833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: COMLINE Battery Code: CB335PL Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 630 A Battery Capacity: 95 AH Post Positions: 0 Filled Weight: 20.3 kg Length: 304 Width: 173 Height: 220 |  |
