Battery for TOYOTA HIACE I (Generation 1) Box (RH1, LH3, RH3, RH2, LH2, LH1)
Compatible Car Batteries for TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1)
Model years: 02.1977 - 03.1983. Car body type: Box
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.0 (RH25-32) | 07.1977 - 03.1983 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
8.58” x 5.24” x 8.03” 218 x 133 x 204 mm |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.2 D (LH20-30) | 01.1979 - 03.1983 |
10.63” x 6.81” x 8.74” 303 x 175 x 227 mm |
9.13” x 6.81” x 8.86” 306 x 173 x 222 mm |
8.58” x 5.24” x 8.03” 234 x 127 x 200 mm |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 1.6 (RH20-30) | 02.1977 - 03.1983 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
8.58” x 5.24” x 8.03” 218 x 133 x 204 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.0 (RH25-32) | 07.1977 - 03.1983 | 700 | 480 | 300 |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.2 D (LH20-30) | 01.1979 - 03.1983 | 850 | 720 | 300 |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 1.6 (RH20-30) | 02.1977 - 03.1983 | 700 | 480 | 300 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.0 (RH25-32) | 07.1977 - 03.1983 | 75 | 60 | 45 |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 2.2 D (LH20-30) | 01.1979 - 03.1983 | 100 | 95 | 45 |
| TOYOTA HIACE I (1) Box (RH1, LH3, RH3, RH2, LH2, LH1) 1.6 (RH20-30) | 02.1977 - 03.1983 | 75 | 60 | 45 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5704130633132 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 261 Width: 175 Height: 220 |  |

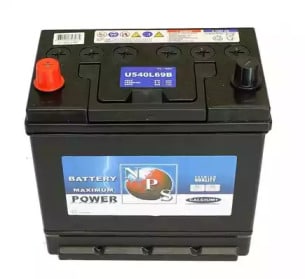

Battery Brand: NPS Battery Code: U540L69B Length: 218 Width: 133 Height: 204 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 420 A |  |
Battery Brand: BOSCH Battery Code: 0 092 S30 170 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 300 A Length: 220 Width: 135 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5954040833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: EXIDE Battery Code: EB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 230 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 238 Width: 129 Height: 227 Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
