Battery for TOYOTA HILUX IV (Generation 4) Pickup Truck (N5, N6)
Compatible Car Batteries for TOYOTA HILUX IV (4) Pickup Truck (N5, N6)
Model years: 08.1983 - 03.1989. Car body type: Pickup Truck
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 (YN57) | 01.1984 - 12.1986 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.2 4WD (YN6) | 01.1987 - 03.1989 |
10.63” x 6.81” x 8.74” 255 x 172 x 223 mm |
9.13” x 6.81” x 8.86” 230 x 173 x 222 mm |
9.06” x 6.77” x 7.87” 230 x 172 x 200 mm |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.4 D 4WD (LN6) | 01.1984 - 12.1988 |
10.63” x 6.81” x 8.74” 304 x 174 x 225 mm |
9.13” x 6.81” x 8.86” 270 x 173 x 222 mm |
9.06” x 6.77” x 7.87” 260 x 170 x 220 mm |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 4WD (YN65, YN61, YN60) | 01.1985 - 12.1988 |
10.63” x 6.81” x 8.74” 255 x 172 x 223 mm |
9.13” x 6.81” x 8.86” 230 x 172 x 200 mm |
9.06” x 6.77” x 7.87” 238 x 129 x 220 mm |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 1.8 (YN5) | 08.1983 - 12.1988 |
10.63” x 6.81” x 8.74” 269 x 174 x 225 mm |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.06” x 6.77” x 7.87” 232 x 173 x 220 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 (YN57) | 01.1984 - 12.1986 | 630 | 510 | 390 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.2 4WD (YN6) | 01.1987 - 03.1989 | 600 | 510 | 390 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.4 D 4WD (LN6) | 01.1984 - 12.1988 | 800 | 570 | 540 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 4WD (YN65, YN61, YN60) | 01.1985 - 12.1988 | 600 | 390 | 330 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 1.8 (YN5) | 08.1983 - 12.1988 | 630 | 510 | 390 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 (YN57) | 01.1984 - 12.1986 | 75 | 60 | 60 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.2 4WD (YN6) | 01.1987 - 03.1989 | 70 | 60 | 60 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.4 D 4WD (LN6) | 01.1984 - 12.1988 | 95 | 70 | 68 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 2.0 4WD (YN65, YN61, YN60) | 01.1985 - 12.1988 | 70 | 60 | 45 |
| TOYOTA HILUX IV (4) Pickup Truck (N5, N6) 1.8 (YN5) | 08.1983 - 12.1988 | 75 | 60 | 60 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S40 250 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 232 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EC605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 440 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: 1 Hold-down Type: B9 |  |
Battery Brand: DETA Battery Code: DB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: PLATINUM Battery Code: 030E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 590 A Cold Cranking Amps (CCA) DIN: 57088 A Length: 255 Width: 172 Height: 223 Post Positions: 0 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |
Battery Brand: TUDOR Battery Code: TB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: EXIDE Battery Code: EA755 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 630 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: COMLINE Battery Code: CB030PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |

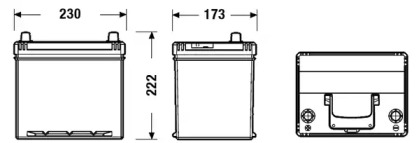

Battery Brand: EXIDE Battery Code: EB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: VMF Battery Code: 54524 Voltage: 12 V Battery Capacity: 45 AH Height: 220 Width: 129 Length: 238 Cold Cranking Amps (CCA): 330 A Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
