Battery for TOYOTA HILUX V (Generation 5) Pickup Truck (LN, KZN1, VZN1)
Compatible Car Batteries for TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1)
Model years: 09.1988 - 01.1999. Car body type: Pickup Truck
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN8, LN9, LN14, LN15) | 01.1992 - 08.1997 |
10.59” x 6.85” x 8.86” 269 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 260 x 170 x 220 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 i 4WD | 08.1989 - 07.1997 |
10.59” x 6.85” x 8.86” 271 x 175 x 220 mm |
10.63” x 6.81” x 8.74” 230 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 234 x 127 x 200 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN110) | 01.1994 - 12.1997 |
10.59” x 6.85” x 8.86” 304 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 260 x 170 x 220 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 1.8 (YN5, YN8, YN85) | 09.1988 - 06.1998 |
10.59” x 6.85” x 8.86” 270 x 173 x 222 mm |
10.63” x 6.81” x 8.74” 238 x 129 x 227 mm |
10.24” x 6.69” x 8.66” 234 x 127 x 200 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D | 03.1995 - 08.1997 |
10.59” x 6.85” x 8.86” 304 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 260 x 170 x 220 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN85) | 09.1988 - 08.1997 |
10.59” x 6.85” x 8.86” 269 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 257 x 172 x 200 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN1) | 09.1988 - 08.1997 |
10.59” x 6.85” x 8.86” 304 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 260 x 170 x 220 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN11) | 08.1991 - 07.1997 |
10.59” x 6.85” x 8.86” 269 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 269 x 173 x 218 mm |
10.24” x 6.69” x 8.66” 261 x 173 x 205 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN85, LN90) | 10.1988 - 08.1991 |
10.59” x 6.85” x 8.86” 269 x 174 x 225 mm |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.69” x 8.66” 257 x 172 x 200 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.2 4WD (YN106) | 03.1989 - 07.1994 |
10.59” x 6.85” x 8.86” 255 x 172 x 223 mm |
10.63” x 6.81” x 8.74” 232 x 175 x 225 mm |
10.24” x 6.69” x 8.66” 232 x 173 x 225 mm |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN10) | 09.1994 - 06.1998 |
10.59” x 6.85” x 8.86” 271 x 175 x 220 mm |
10.63” x 6.81” x 8.74” 271 x 175 x 220 mm |
10.24” x 6.69” x 8.66” 271 x 175 x 220 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN8, LN9, LN14, LN15) | 01.1992 - 08.1997 | 700 | 550 | 450 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 i 4WD | 08.1989 - 07.1997 | 700 | 510 | 300 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN110) | 01.1994 - 12.1997 | 740 | 570 | 540 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 1.8 (YN5, YN8, YN85) | 09.1988 - 06.1998 | 590 | 330 | 300 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D | 03.1995 - 08.1997 | 740 | 550 | 540 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN85) | 09.1988 - 08.1997 | 700 | 550 | 510 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN1) | 09.1988 - 08.1997 | 740 | 550 | 540 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN11) | 08.1991 - 07.1997 | 700 | 550 | 450 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN85, LN90) | 10.1988 - 08.1991 | 700 | 550 | 510 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.2 4WD (YN106) | 03.1989 - 07.1994 | 590 | 540 | 450 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN10) | 09.1994 - 06.1998 | 630 | 630 | 630 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN8, LN9, LN14, LN15) | 01.1992 - 08.1997 | 75 | 70 | 60 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 i 4WD | 08.1989 - 07.1997 | 70 | 60 | 45 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN110) | 01.1994 - 12.1997 | 90 | 70 | 68 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 1.8 (YN5, YN8, YN85) | 09.1988 - 06.1998 | 70 | 45 | 45 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D | 03.1995 - 08.1997 | 90 | 70 | 68 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN85) | 09.1988 - 08.1997 | 75 | 70 | 68 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN1) | 09.1988 - 08.1997 | 90 | 70 | 68 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN11) | 08.1991 - 07.1997 | 75 | 70 | 60 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D (LN5, LN85, LN90) | 10.1988 - 08.1991 | 75 | 70 | 68 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.2 4WD (YN106) | 03.1989 - 07.1994 | 70 | 60 | 60 |
| TOYOTA HILUX V (5) Pickup Truck (LN, KZN1, VZN1) 2.4 D 4WD (LN10) | 09.1994 - 06.1998 | 70 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|

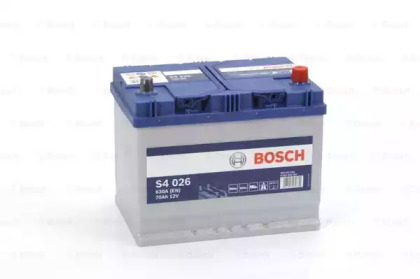

Battery Brand: BOSCH Battery Code: 0 092 S40 260 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Length: 271 Width: 175 Height: 220 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 57029 Voltage: 12 V Battery Capacity: 70 AH Height: 220 Width: 175 Length: 261 Cold Cranking Amps (CCA): 550 A Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB069PL Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 450 A Battery Capacity: 60 AH Post Positions: 1 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |
Battery Brand: NPS Battery Code: U540L19B Length: 230 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 300 A Cold Cranking Amps (CCA): 480 A |  |

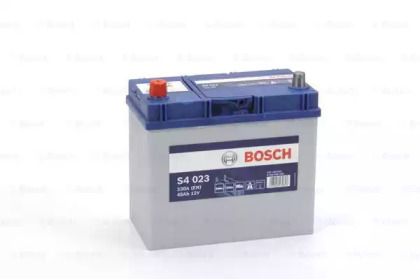

Battery Brand: BOSCH Battery Code: 0 092 S40 230 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 238 Width: 129 Height: 227 Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |

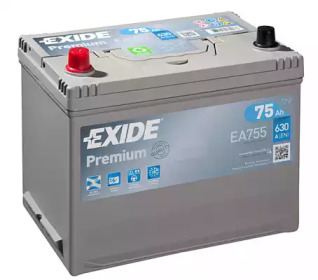

Battery Brand: EXIDE Battery Code: EA755 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 630 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: COMLINE Battery Code: CB030PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |
Battery Brand: PLATINUM Battery Code: 030E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 590 A Cold Cranking Amps (CCA) DIN: 57088 A Length: 255 Width: 172 Height: 223 Post Positions: 0 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: TUDOR Battery Code: TB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: VARTA Battery Code: 5704120633132 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 630 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B01 Length: 261 Width: 175 Height: 220 |  |
Battery Brand: TUDOR Battery Code: TB705 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 540 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B9 |  |
Battery Brand: NPS Battery Code: U540L23B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: VMF Battery Code: 57024 Voltage: 12 V Battery Capacity: 70 AH Height: 220 Width: 175 Length: 261 Cold Cranking Amps (CCA): 550 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |

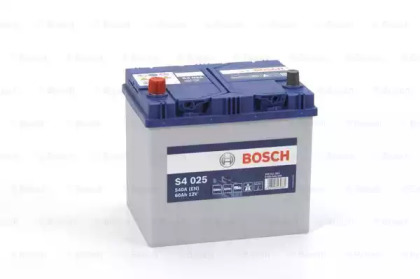

Battery Brand: BOSCH Battery Code: 0 092 S40 250 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 232 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
