Battery for TOYOTA HILUX VII (Generation 7) Pickup Truck (N1, N2, N3)
Compatible Car Batteries for TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3)
Model years: since 08.2004. Car body type: Pickup Truck
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D | since 01.2010 |
12.05” x 6.81” x 8.86” 306 x 173 x 225 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 260 x 174 x 225 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D 4WD (KUN25) | since 10.2005 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 260 x 170 x 220 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD (KUN25) | since 12.2007 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 260 x 170 x 220 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15) | since 12.2007 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 303 x 173 x 220 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD (KUN26) | since 12.2007 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 270 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 300 x 169 x 198 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15, KUN25, KUN35) | since 10.2005 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 255 x 172 x 223 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD | since 09.2009 |
12.05” x 6.81” x 8.86” 303 x 175 x 227 mm |
12.05” x 6.81” x 8.74” 306 x 173 x 222 mm |
10.24” x 6.85” x 8.86” 317 x 175 x 175 mm |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD | 05.2008 - 12.2008 |
12.05” x 6.81” x 8.86” 304 x 174 x 225 mm |
12.05” x 6.81” x 8.74” 260 x 174 x 225 mm |
10.24” x 6.85” x 8.86” 260 x 174 x 225 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D | since 01.2010 | 830 | 800 | 570 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D 4WD (KUN25) | since 10.2005 | 850 | 720 | 540 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD (KUN25) | since 12.2007 | 850 | 740 | 540 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15) | since 12.2007 | 850 | 800 | 630 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD (KUN26) | since 12.2007 | 850 | 630 | 540 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15, KUN25, KUN35) | since 10.2005 | 850 | 800 | 590 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD | since 09.2009 | 850 | 800 | 630 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD | 05.2008 - 12.2008 | 740 | 570 | 570 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D | since 01.2010 | 100 | 95 | 70 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D 4WD (KUN25) | since 10.2005 | 100 | 95 | 68 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD (KUN25) | since 12.2007 | 100 | 95 | 68 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15) | since 12.2007 | 100 | 95 | 90 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD (KUN26) | since 12.2007 | 100 | 75 | 70 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D (KUN15, KUN25, KUN35) | since 10.2005 | 100 | 95 | 70 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 2.5 D-4D 4WD | since 09.2009 | 100 | 95 | 80 |
| TOYOTA HILUX VII (7) Pickup Truck (N1, N2, N3) 3.0 D-4D 4WD | 05.2008 - 12.2008 | 90 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5954050833132 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B01 Length: 306 Width: 173 Height: 225 |  |
Battery Brand: PLATINUM Battery Code: 249E Voltage: 12 V Battery Capacity: 90 AH Cold Cranking Amps (CCA): 740 A Cold Cranking Amps (CCA) DIN: 59004 A Length: 304 Width: 174 Height: 225 Post Positions: 0 Terminal Type: T1 Hold-down Type: B01 |  |
Battery Brand: TUDOR Battery Code: TB955 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: COMLINE Battery Code: CB030PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |
Battery Brand: VMF Battery Code: 60033 Voltage: 12 V Battery Capacity: 100 AH Height: 220 Width: 173 Length: 303 Cold Cranking Amps (CCA): 740 A Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB335PL Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 630 A Battery Capacity: 95 AH Post Positions: 0 Filled Weight: 20.3 kg Length: 304 Width: 173 Height: 220 |  |
Battery Brand: TUDOR Battery Code: TA755 Voltage: 12 V Battery Capacity: 75 AH Cold Cranking Amps (CCA): 630 A Length: 270 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: Korean B1 |  |

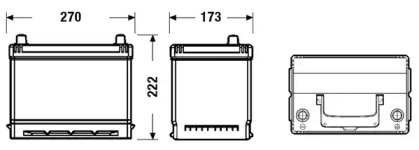

Battery Brand: EXIDE Battery Code: EB704 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 540 A Length: 270 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B9 |  |
Battery Brand: COMLINE Battery Code: CB335PR Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 730 A Battery Capacity: 100 AH Post Positions: 0 Filled Weight: 21.6 kg Length: 304 Width: 173 Height: 220 |  |
Battery Brand: PLATINUM Battery Code: 030E Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 590 A Cold Cranking Amps (CCA) DIN: 57088 A Length: 255 Width: 172 Height: 223 Post Positions: 0 Terminal Type: T1 Hold-down Type: N |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 290 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 1 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB334PL Hold-down Type: B1 Voltage: 12 V Cold Cranking Amps (CCA): 630 A Battery Capacity: 95 AH Post Positions: 1 Filled Weight: 20.3 kg Length: 304 Width: 173 Height: 220 |  |
