Battery for TOYOTA PROACE Box Body / Station Wagon (MDX)
Compatible Car Batteries for TOYOTA PROACE Box Body / Station Wagon (MDX)
Model years: 06.2013 - 03.2016. Car body type: Box Body / Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA PROACE Box Body / Station Wagon (MDX) 1.6 D (MDX9) | 06.2013 - 03.2016 |
10.04” x 6.77” x 8.78” 255 x 172 x 223 mm |
9.53” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.53” x 6.85” x 7.48” 242 x 174 x 190 mm |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX3) | 06.2013 - 03.2016 |
10.04” x 6.77” x 8.78” 305 x 173 x 225 mm |
9.53” x 6.89” x 7.48” 278 x 175 x 190 mm |
9.53” x 6.85” x 7.48” 278 x 175 x 175 mm |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX6) | 06.2013 - 03.2016 |
10.04” x 6.77” x 8.78” 305 x 173 x 225 mm |
9.53” x 6.89” x 7.48” 278 x 175 x 190 mm |
9.53” x 6.85” x 7.48” 278 x 175 x 175 mm |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D 4WD (MDX4) | 06.2013 - 03.2016 |
10.04” x 6.77” x 8.78” 278 x 175 x 190 mm |
9.53” x 6.89” x 7.48” 278 x 175 x 190 mm |
9.53” x 6.85” x 7.48” 278 x 175 x 190 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA PROACE Box Body / Station Wagon (MDX) 1.6 D (MDX9) | 06.2013 - 03.2016 | 680 | 560 | 480 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX3) | 06.2013 - 03.2016 | 780 | 680 | 600 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX6) | 06.2013 - 03.2016 | 780 | 680 | 640 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D 4WD (MDX4) | 06.2013 - 03.2016 | 780 | 680 | 650 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA PROACE Box Body / Station Wagon (MDX) 1.6 D (MDX9) | 06.2013 - 03.2016 | 80 | 62 | 55 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX3) | 06.2013 - 03.2016 | 80 | 74 | 70 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D (MDX6) | 06.2013 - 03.2016 | 80 | 74 | 70 |
| TOYOTA PROACE Box Body / Station Wagon (MDX) 2.0 D 4WD (MDX4) | 06.2013 - 03.2016 | 77 | 70 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S5A 050 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 680 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: EFB560560 Voltage: 12 V Battery Capacity: 60 AH Height: 190 Width: 174 Length: 242 Cold Cranking Amps (CCA): 560 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB027PL Hold-down Type: B3 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 60 AH Post Positions: 0 Filled Weight: 14.5 kg Length: 242 Width: 175 Height: 190 |  |
Battery Brand: BOSCH Battery Code: 0 092 S50 080 Voltage: 12 V Battery Capacity: 77 AH Cold Cranking Amps (CCA): 780 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |

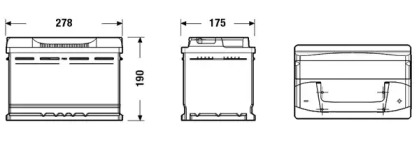

Battery Brand: EXIDE Battery Code: EB740 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: OPEN PARTS Battery Code: BT073L3B.00 Battery Capacity: 73 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 278 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 080 Voltage: 12 V Battery Capacity: 74 AH Cold Cranking Amps (CCA): 680 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 570500065D842 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 650 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 278 Width: 175 Height: 190 |  |
Battery Brand: BOSCH Battery Code: 0 092 S4E 080 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA): 650 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
