Battery for TOYOTA COROLLA (E8)
Compatible Car Batteries for TOYOTA COROLLA (E8)
Model years: 06.1983 - 06.1989. Car body type: Sedan
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA COROLLA (E8) 1.3 (AE80) | 06.1983 - 10.1984 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 237 x 127 x 227 mm |
7.36” x 5” x 7.87” 187 x 127 x 200 mm |
| TOYOTA COROLLA (E8) 1.3 (AE80/EE80) | 10.1984 - 08.1987 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 237 x 127 x 227 mm |
7.36” x 5” x 7.87” 187 x 127 x 200 mm |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 06.1983 - 08.1987 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 238 x 129 x 227 mm |
7.36” x 5” x 7.87” 196 x 134 x 226 mm |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 05.1988 |
9.13” x 6.89” x 8.86” 306 x 173 x 222 mm |
9.33” x 5” x 8.94” 315 x 175 x 205 mm |
7.36” x 5” x 7.87” 260 x 170 x 220 mm |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 06.1989 |
9.13” x 6.89” x 8.86” 303 x 175 x 227 mm |
9.33” x 5” x 8.94” 271 x 175 x 220 mm |
7.36” x 5” x 7.87” 238 x 129 x 223 mm |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 12.1985 - 05.1988 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 230 x 173 x 220 mm |
7.36” x 5” x 7.87” 196 x 134 x 226 mm |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 08.1985 - 08.1987 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 238 x 129 x 227 mm |
7.36” x 5” x 7.87” 196 x 134 x 226 mm |
| TOYOTA COROLLA (E8) 1.3 (AE80) | 09.1985 - 05.1989 |
9.13” x 6.89” x 8.86” 232 x 175 x 225 mm |
9.33” x 5” x 8.94” 238 x 129 x 225 mm |
7.36” x 5” x 7.87” 187 x 127 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA COROLLA (E8) 1.3 (AE80) | 06.1983 - 10.1984 | 600 | 330 | 300 |
| TOYOTA COROLLA (E8) 1.3 (AE80/EE80) | 10.1984 - 08.1987 | 600 | 330 | 300 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 06.1983 - 08.1987 | 600 | 360 | 300 |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 05.1988 | 850 | 700 | 540 |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 06.1989 | 850 | 700 | 400 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 12.1985 - 05.1988 | 600 | 480 | 300 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 08.1985 - 08.1987 | 600 | 360 | 300 |
| TOYOTA COROLLA (E8) 1.3 (AE80) | 09.1985 - 05.1989 | 550 | 390 | 300 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA COROLLA (E8) 1.3 (AE80) | 06.1983 - 10.1984 | 65 | 45 | 35 |
| TOYOTA COROLLA (E8) 1.3 (AE80/EE80) | 10.1984 - 08.1987 | 65 | 45 | 35 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 06.1983 - 08.1987 | 65 | 45 | 45 |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 05.1988 | 105 | 90 | 68 |
| TOYOTA COROLLA (E8) 1.8 D (CE80) | 06.1983 - 06.1989 | 105 | 77 | 45 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 12.1985 - 05.1988 | 65 | 60 | 45 |
| TOYOTA COROLLA (E8) 1.6 (AE82) | 08.1985 - 08.1987 | 65 | 45 | 45 |
| TOYOTA COROLLA (E8) 1.3 (AE80) | 09.1985 - 05.1989 | 65 | 45 | 35 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: DETA Battery Code: DA456 Voltage: 12 V Battery Capacity: 45 AH Height: 227 Width: 127 Length: 237 Cold Cranking Amps (CCA): 390 A Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: VMF Battery Code: 54523 Voltage: 12 V Battery Capacity: 45 AH Height: 220 Width: 129 Length: 238 Cold Cranking Amps (CCA): 330 A Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L05B Length: 187 Width: 127 Height: 200 Voltage: 12 V Battery Capacity: 35 AH Cold Cranking Amps (CCA) DIN: 180 A Cold Cranking Amps (CCA): 300 A |  |
Battery Brand: TUDOR Battery Code: TA456 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 390 A Length: 237 Width: 127 Height: 227 Post Positions: 0 Terminal Type: JIS Hold-down Type: Korean B1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 210 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 238 Width: 129 Height: 227 Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L45B Length: 230 Width: 172 Height: 200 Voltage: 12 V Cold Cranking Amps (CCA): 480 A Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 250 A |  |
Battery Brand: VARTA Battery Code: 5451560333132 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B00 Length: 238 Width: 129 Height: 227 |  |

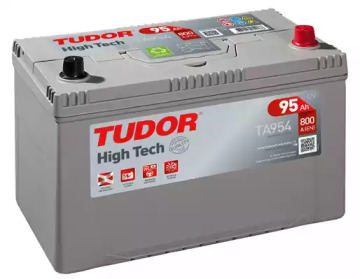

Battery Brand: TUDOR Battery Code: TA954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: DETA Battery Code: DB954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: COMLINE Battery Code: CB030PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 540 A Battery Capacity: 70 AH Post Positions: 0 Filled Weight: 15.6 kg Length: 260 Width: 170 Height: 220 |  |
Battery Brand: EXIDE Battery Code: EA954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: PLATINUM Battery Code: 096SPPLA Voltage: 12 V Battery Capacity: 77 AH Cold Cranking Amps (CCA): 680 A Cold Cranking Amps (CCA) DIN: 57700 A Length: 278 Width: 175 Height: 190 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 5604100543132 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B00 Length: 232 Width: 173 Height: 225 |  |
Battery Brand: PLATINUM Battery Code: 043E Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 390 A Cold Cranking Amps (CCA) DIN: 54523 A Length: 238 Width: 129 Height: 225 Post Positions: 1 Terminal Type: T3 Hold-down Type: N |  |
Battery Brand: NPS Battery Code: U540L04B Length: 187 Width: 127 Height: 200 Voltage: 12 V Battery Capacity: 35 AH Cold Cranking Amps (CCA) DIN: 180 A Cold Cranking Amps (CCA): 300 A |  |
