Battery for TOYOTA COROLLA Station Wagon (E7)
Compatible Car Batteries for TOYOTA COROLLA Station Wagon (E7)
Model years: 12.1979 - 08.1987. Car body type: Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 12.1979 - 01.1982 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.37” x 5.08” x 8.94” 238 x 129 x 227 mm |
7.72” x 5.28” x 8.9” 196 x 134 x 226 mm |
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 02.1982 - 08.1987 |
10.63” x 6.81” x 8.74” 270 x 173 x 222 mm |
9.37” x 5.08” x 8.94” 238 x 129 x 227 mm |
7.72” x 5.28” x 8.9” 196 x 134 x 226 mm |
| TOYOTA COROLLA Station Wagon (E7) 1.8 D (TE72LG) | 05.1983 - 08.1987 |
10.63” x 6.81” x 8.74” 306 x 173 x 222 mm |
9.37” x 5.08” x 8.94” 315 x 175 x 205 mm |
7.72” x 5.28” x 8.9” 257 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 12.1979 - 01.1982 | 630 | 330 | 300 |
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 02.1982 - 08.1987 | 630 | 330 | 300 |
| TOYOTA COROLLA Station Wagon (E7) 1.8 D (TE72LG) | 05.1983 - 08.1987 | 850 | 720 | 510 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 12.1979 - 01.1982 | 75 | 45 | 45 |
| TOYOTA COROLLA Station Wagon (E7) 1.3 (KE70) | 02.1982 - 08.1987 | 75 | 45 | 45 |
| TOYOTA COROLLA Station Wagon (E7) 1.8 D (TE72LG) | 05.1983 - 08.1987 | 105 | 95 | 68 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: NPS Battery Code: U540L45B Length: 230 Width: 172 Height: 200 Voltage: 12 V Cold Cranking Amps (CCA): 480 A Battery Capacity: 60 AH Cold Cranking Amps (CCA) DIN: 250 A |  |
Battery Brand: VMF Battery Code: 54523 Voltage: 12 V Battery Capacity: 45 AH Height: 220 Width: 129 Length: 238 Cold Cranking Amps (CCA): 330 A Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 210 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 238 Width: 129 Height: 227 Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5451560333132 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B00 Length: 238 Width: 129 Height: 227 |  |

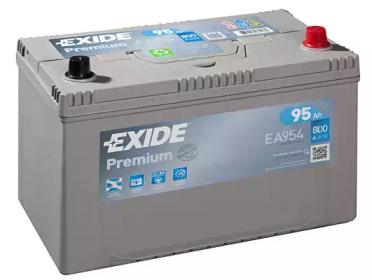

Battery Brand: EXIDE Battery Code: EA954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 800 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: DETA Battery Code: DB954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L66B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
