Battery for TOYOTA COROLLA Wagon (E11)
Compatible Car Batteries for TOYOTA COROLLA Wagon (E11)
Model years: 04.1997 - 10.2001. Car body type: Station Wagon
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA COROLLA Wagon (E11) 1.4 (EE111) | 04.1997 - 02.2000 |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.57” x 6.89” x 7.48” 243 x 175 x 190 mm |
9.21” x 5” x 7.87” 234 x 127 x 200 mm |
| TOYOTA COROLLA Wagon (E11) 1.6 (AE111) | 04.1997 - 02.2000 |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.57” x 6.89” x 7.48” 243 x 175 x 190 mm |
9.21” x 5” x 7.87” 242 x 175 x 175 mm |
| TOYOTA COROLLA Wagon (E11) 1.6 Aut. (AE111) | 04.1997 - 02.2000 |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.57” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.21” x 5” x 7.87” 200 x 173 x 222 mm |
| TOYOTA COROLLA Wagon (E11) 1.8 4WD (AE115) | 04.1997 - 10.2001 |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.57” x 6.89” x 7.48” 230 x 170 x 224 mm |
9.21” x 5” x 7.87” 202 x 173 x 225 mm |
| TOYOTA COROLLA Wagon (E11) 2.0 D (CE110) | 04.1997 - 02.2000 |
9.13” x 6.81” x 8.86” 303 x 175 x 227 mm |
9.57” x 6.89” x 7.48” 306 x 173 x 222 mm |
9.21” x 5” x 7.87” 257 x 172 x 200 mm |
| TOYOTA COROLLA Wagon (E11) 1.4 16V (ZZE111) | 02.2000 - 10.2001 |
9.13” x 6.81” x 8.86” 232 x 175 x 225 mm |
9.57” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.21” x 5” x 7.87” 242 x 175 x 175 mm |
| TOYOTA COROLLA Wagon (E11) 1.6 16V (ZZE112) | 02.2000 - 10.2001 |
9.13” x 6.81” x 8.86” 232 x 173 x 225 mm |
9.57” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.21” x 5” x 7.87” 234 x 127 x 200 mm |
| TOYOTA COROLLA Wagon (E11) 1.9 D (WZE110) | 02.2000 - 10.2001 |
9.13” x 6.81” x 8.86” 303 x 175 x 227 mm |
9.57” x 6.89” x 7.48” 306 x 173 x 222 mm |
9.21” x 5” x 7.87” 257 x 172 x 200 mm |
| TOYOTA COROLLA Wagon (E11) 2.0 D-4D (CDE110) | 09.2000 - 10.2001 |
9.13” x 6.81” x 8.86” 303 x 175 x 227 mm |
9.57” x 6.89” x 7.48” 315 x 175 x 205 mm |
9.21” x 5” x 7.87” 257 x 172 x 200 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA COROLLA Wagon (E11) 1.4 (EE111) | 04.1997 - 02.2000 | 620 | 480 | 360 |
| TOYOTA COROLLA Wagon (E11) 1.6 (AE111) | 04.1997 - 02.2000 | 620 | 510 | 360 |
| TOYOTA COROLLA Wagon (E11) 1.6 Aut. (AE111) | 04.1997 - 02.2000 | 620 | 540 | 360 |
| TOYOTA COROLLA Wagon (E11) 1.8 4WD (AE115) | 04.1997 - 10.2001 | 610 | 540 | 390 |
| TOYOTA COROLLA Wagon (E11) 2.0 D (CE110) | 04.1997 - 02.2000 | 850 | 800 | 510 |
| TOYOTA COROLLA Wagon (E11) 1.4 16V (ZZE111) | 02.2000 - 10.2001 | 620 | 540 | 360 |
| TOYOTA COROLLA Wagon (E11) 1.6 16V (ZZE112) | 02.2000 - 10.2001 | 620 | 540 | 360 |
| TOYOTA COROLLA Wagon (E11) 1.9 D (WZE110) | 02.2000 - 10.2001 | 850 | 800 | 510 |
| TOYOTA COROLLA Wagon (E11) 2.0 D-4D (CDE110) | 09.2000 - 10.2001 | 850 | 720 | 510 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA COROLLA Wagon (E11) 1.4 (EE111) | 04.1997 - 02.2000 | 65 | 60 | 45 |
| TOYOTA COROLLA Wagon (E11) 1.6 (AE111) | 04.1997 - 02.2000 | 65 | 60 | 50 |
| TOYOTA COROLLA Wagon (E11) 1.6 Aut. (AE111) | 04.1997 - 02.2000 | 65 | 60 | 50 |
| TOYOTA COROLLA Wagon (E11) 1.8 4WD (AE115) | 04.1997 - 10.2001 | 65 | 60 | 50 |
| TOYOTA COROLLA Wagon (E11) 2.0 D (CE110) | 04.1997 - 02.2000 | 105 | 95 | 70 |
| TOYOTA COROLLA Wagon (E11) 1.4 16V (ZZE111) | 02.2000 - 10.2001 | 65 | 60 | 45 |
| TOYOTA COROLLA Wagon (E11) 1.6 16V (ZZE112) | 02.2000 - 10.2001 | 65 | 60 | 45 |
| TOYOTA COROLLA Wagon (E11) 1.9 D (WZE110) | 02.2000 - 10.2001 | 105 | 95 | 70 |
| TOYOTA COROLLA Wagon (E11) 2.0 D-4D (CDE110) | 09.2000 - 10.2001 | 105 | 80 | 70 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: BOSCH Battery Code: 0 092 S40 240 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Length: 232 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: COMLINE Battery Code: CB005PL Hold-down Type: B0 Voltage: 12 V Cold Cranking Amps (CCA): 450 A Battery Capacity: 60 AH Post Positions: 0 Filled Weight: 14.8 kg Length: 230 Width: 170 Height: 220 |  |
Battery Brand: EXIDE Battery Code: EB504 Voltage: 12 V Battery Capacity: 50 AH Cold Cranking Amps (CCA): 360 A Length: 200 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |

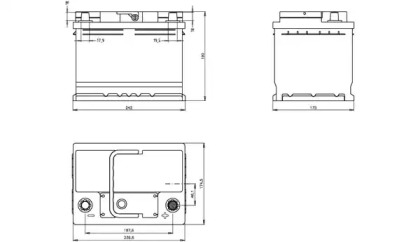

Battery Brand: OPEN PARTS Battery Code: BT060L2.00 Battery Capacity: 60 AH Voltage: 12 V Cold Cranking Amps (CCA): 600 A Length: 242 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: VMF Battery Code: 56068 Voltage: 12 V Battery Capacity: 60 AH Height: 220 Width: 175 Length: 232 Cold Cranking Amps (CCA): 510 A Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5634000613162 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |
Battery Brand: VMF Battery Code: 56219 Voltage: 12 V Battery Capacity: 62 AH Height: 190 Width: 175 Length: 242 Cold Cranking Amps (CCA): 540 A Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: DETA Battery Code: DB604 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 280 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 830 A Length: 306 Width: 173 Height: 225 Post Positions: 0 Hold-down Type: B01 Terminal Type: 1 |  |
Battery Brand: EXIDE Battery Code: EB954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
Battery Brand: NPS Battery Code: U540L23B Length: 257 Width: 172 Height: 200 Voltage: 12 V Battery Capacity: 70 AH Cold Cranking Amps (CCA) DIN: 310 A Cold Cranking Amps (CCA): 510 A |  |
Battery Brand: NPS Battery Code: U540L11B Length: 234 Width: 127 Height: 200 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: TUDOR Battery Code: TB954 Voltage: 12 V Battery Capacity: 95 AH Cold Cranking Amps (CCA): 720 A Length: 306 Width: 173 Height: 222 Post Positions: 0 Terminal Type: EN Hold-down Type: Korean B1 |  |
