Battery for TOYOTA YARIS (P1)
Compatible Car Batteries for TOYOTA YARIS (P1)
Model years: 01.1999 - 12.2005. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA YARIS (P1) 1.0 (SCP10) | 04.1999 - 09.2005 |
9.33” x 5.28” x 8.9” 237 x 134 x 226 mm |
9.37” x 5.08” x 8.66” 238 x 129 x 220 mm |
9.21” x 5” x 7.87” 234 x 127 x 200 mm |
| TOYOTA YARIS (P1) 1.3 (NCP10, SCP12) | 11.1999 - 10.2005 |
9.33” x 5.28” x 8.9” 237 x 134 x 226 mm |
9.37” x 5.08” x 8.66” 207 x 175 x 190 mm |
9.21” x 5” x 7.87” 196 x 134 x 226 mm |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 04.2001 - 09.2005 |
9.33” x 5.28” x 8.9” 237 x 134 x 226 mm |
9.37” x 5.08” x 8.66” 207 x 175 x 190 mm |
9.21” x 5” x 7.87” 208 x 174 x 175 mm |
| TOYOTA YARIS (P1) 1.4 D-4D (NLP10) | 10.2001 - 09.2005 |
9.33” x 5.28” x 8.9” 232 x 175 x 225 mm |
9.37” x 5.08” x 8.66” 242 x 175 x 190 mm |
9.21” x 5” x 7.87” 207 x 175 x 175 mm |
| TOYOTA YARIS (P1) 1.3 (SCP12) | 08.1999 - 09.2005 |
9.33” x 5.28” x 8.9” 238 x 129 x 227 mm |
9.37” x 5.08” x 8.66” 207 x 175 x 175 mm |
9.21” x 5” x 7.87” 208 x 174 x 175 mm |
| TOYOTA YARIS (P1) 1.0 (SCP10) | 03.2003 - 09.2005 |
9.33” x 5.28” x 8.9” 238 x 129 x 227 mm |
9.37” x 5.08” x 8.66” 207 x 175 x 175 mm |
9.21” x 5” x 7.87” 234 x 127 x 200 mm |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 01.2003 - 11.2005 |
9.33” x 5.28” x 8.9” 237 x 134 x 226 mm |
9.37” x 5.08” x 8.66” 237 x 127 x 227 mm |
9.21” x 5” x 7.87” 208 x 174 x 175 mm |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 03.2000 - 07.2005 |
9.33” x 5.28” x 8.9” 242 x 174 x 190 mm |
9.37” x 5.08” x 8.66” 207 x 175 x 190 mm |
9.21” x 5” x 7.87” 208 x 174 x 175 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA YARIS (P1) 1.0 (SCP10) | 04.1999 - 09.2005 | 520 | 360 | 300 |
| TOYOTA YARIS (P1) 1.3 (NCP10, SCP12) | 11.1999 - 10.2005 | 530 | 400 | 300 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 04.2001 - 09.2005 | 540 | 360 | 300 |
| TOYOTA YARIS (P1) 1.4 D-4D (NLP10) | 10.2001 - 09.2005 | 680 | 540 | 390 |
| TOYOTA YARIS (P1) 1.3 (SCP12) | 08.1999 - 09.2005 | 530 | 420 | 320 |
| TOYOTA YARIS (P1) 1.0 (SCP10) | 03.2003 - 09.2005 | 520 | 420 | 330 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 01.2003 - 11.2005 | 520 | 360 | 300 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 03.2000 - 07.2005 | 540 | 470 | 350 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA YARIS (P1) 1.0 (SCP10) | 04.1999 - 09.2005 | 52 | 45 | 40 |
| TOYOTA YARIS (P1) 1.3 (NCP10, SCP12) | 11.1999 - 10.2005 | 54 | 45 | 44 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 04.2001 - 09.2005 | 53 | 45 | 40 |
| TOYOTA YARIS (P1) 1.4 D-4D (NLP10) | 10.2001 - 09.2005 | 70 | 60 | 45 |
| TOYOTA YARIS (P1) 1.3 (SCP12) | 08.1999 - 09.2005 | 54 | 45 | 40 |
| TOYOTA YARIS (P1) 1.0 (SCP10) | 03.2003 - 09.2005 | 52 | 45 | 40 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 01.2003 - 11.2005 | 52 | 45 | 41 |
| TOYOTA YARIS (P1) 1.5 (NCP13) | 03.2000 - 07.2005 | 55 | 52 | 40 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: VARTA Battery Code: 5524010523162 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 520 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 175 |  |
Battery Brand: TUDOR Battery Code: TB455 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 237 Width: 127 Height: 227 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |
Battery Brand: BOSCH Battery Code: 0 092 S40 230 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 238 Width: 129 Height: 227 Post Positions: 1 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5544000533162 Voltage: 12 V Battery Capacity: 54 AH Cold Cranking Amps (CCA): 530 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
Battery Brand: NPS Battery Code: U540L10B Length: 234 Width: 127 Height: 200 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: DETA Battery Code: DB457 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Length: 237 Width: 127 Height: 227 Post Positions: 1 Terminal Type: JIS Hold-down Type: B0 |  |
Battery Brand: DETA Battery Code: DA530 Voltage: 12 V Battery Capacity: 53 AH Cold Cranking Amps (CCA): 540 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: PLATINUM Battery Code: 063E Voltage: 12 V Battery Capacity: 44 AH Cold Cranking Amps (CCA): 380 A Cold Cranking Amps (CCA) DIN: 54405 A Length: 207 Width: 175 Height: 175 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 5451580333132 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B00 Length: 238 Width: 129 Height: 227 |  |
Battery Brand: VARTA Battery Code: 5634000613162 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 242 Width: 175 Height: 190 |  |
Battery Brand: VARTA Battery Code: 5604110543132 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Post Positions: 1 Terminal Type: 1 Hold-down Type: B00 Length: 232 Width: 173 Height: 225 |  |
Battery Brand: DETA Battery Code: DB605 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 390 A Length: 230 Width: 173 Height: 222 Post Positions: 1 Terminal Type: EN Hold-down Type: B0 |  |

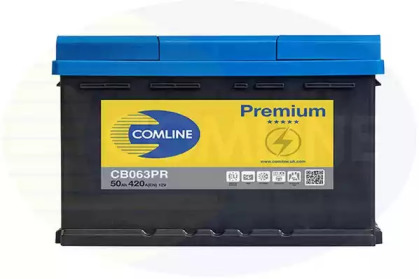

Battery Brand: COMLINE Battery Code: CB063PR Hold-down Type: B3/B4 Voltage: 12 V Cold Cranking Amps (CCA): 420 A Battery Capacity: 50 AH Post Positions: 0 Filled Weight: 11.7 kg Length: 207 Width: 175 Height: 175 |  |

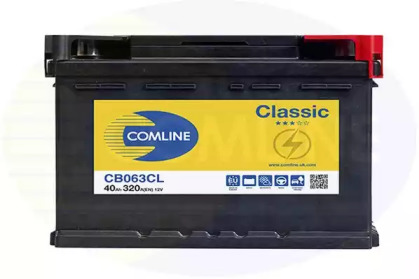

Battery Brand: COMLINE Battery Code: CB063CL Hold-down Type: B3/B4 Voltage: 12 V Cold Cranking Amps (CCA): 320 A Battery Capacity: 40 AH Post Positions: 0 Filled Weight: 10.7 kg Length: 207 Width: 175 Height: 175 |  |

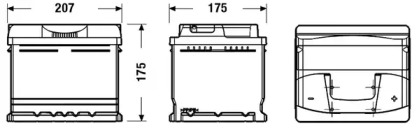

Battery Brand: EXIDE Battery Code: EB442 Voltage: 12 V Battery Capacity: 44 AH Cold Cranking Amps (CCA): 420 A Length: 207 Width: 175 Height: 175 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VMF Battery Code: 54523 Voltage: 12 V Battery Capacity: 45 AH Height: 220 Width: 129 Length: 238 Cold Cranking Amps (CCA): 330 A Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: NPS Battery Code: U540L36B Length: 208 Width: 174 Height: 175 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA) DIN: 220 A Cold Cranking Amps (CCA): 360 A |  |
Battery Brand: VARTA Battery Code: 5524000473132 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 470 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
