Battery for TOYOTA YARIS (P9)
Compatible Car Batteries for TOYOTA YARIS (P9)
Model years: since 01.2005. Car body type: Hatchback
Battery Size Requirements
| Car Model Description | Model Years | Max Size | AVG Size | Min Size |
|---|---|---|---|---|
| TOYOTA YARIS (P9) 1.3 4WD (NCP92) | since 08.2007 |
9.37” x 5.08” x 8.86” 238 x 129 x 225 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 238 x 129 x 223 mm |
| TOYOTA YARIS (P9) 1.3 VVT-i (NCP90, SCP90) | since 01.2005 |
9.37” x 5.08” x 8.86” 242 x 174 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 07.2010 |
9.37” x 5.08” x 8.86” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 242 x 172 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
| TOYOTA YARIS (P9) 1.0 VVT-i (KSP90) | 01.2005 - 11.2011 |
9.37” x 5.08” x 8.86” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
| TOYOTA YARIS (P9) 1.4 D-4D (NLP90) | since 08.2005 |
9.37” x 5.08” x 8.86” 243 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 242 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
| TOYOTA YARIS (P9) 1.3 VVT-i (SCP90) | since 08.2005 |
9.37” x 5.08” x 8.86” 242 x 174 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
| TOYOTA YARIS (P9) 1.8 VVTi (ZSP90) | since 01.2007 |
9.37” x 5.08” x 8.86” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 207 x 175 x 190 mm |
9.37” x 5.08” x 8.78” 208 x 174 x 175 mm |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 11.2008 |
9.37” x 5.08” x 8.86” 242 x 175 x 190 mm |
8.15” x 6.89” x 7.48” 242 x 172 x 190 mm |
9.37” x 5.08” x 8.78” 207 x 175 x 175 mm |
Battery CCA Requirements
| Car Model Description | Model Years | Max CCA | AVG CCA | Min CCA |
|---|---|---|---|---|
| TOYOTA YARIS (P9) 1.3 4WD (NCP92) | since 08.2007 | 540 | 470 | 390 |
| TOYOTA YARIS (P9) 1.3 VVT-i (NCP90, SCP90) | since 01.2005 | 540 | 470 | 360 |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 07.2010 | 680 | 540 | 360 |
| TOYOTA YARIS (P9) 1.0 VVT-i (KSP90) | 01.2005 - 11.2011 | 570 | 450 | 330 |
| TOYOTA YARIS (P9) 1.4 D-4D (NLP90) | since 08.2005 | 680 | 540 | 360 |
| TOYOTA YARIS (P9) 1.3 VVT-i (SCP90) | since 08.2005 | 570 | 440 | 330 |
| TOYOTA YARIS (P9) 1.8 VVTi (ZSP90) | since 01.2007 | 680 | 460 | 330 |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 11.2008 | 680 | 540 | 360 |
Battery Capacity (AH) Requirements
| Car Model Description | Model Years | Max AH | AVG AH | Min AH |
|---|---|---|---|---|
| TOYOTA YARIS (P9) 1.3 4WD (NCP92) | since 08.2007 | 54 | 52 | 45 |
| TOYOTA YARIS (P9) 1.3 VVT-i (NCP90, SCP90) | since 01.2005 | 55 | 52 | 45 |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 07.2010 | 63 | 60 | 44 |
| TOYOTA YARIS (P9) 1.0 VVT-i (KSP90) | 01.2005 - 11.2011 | 60 | 48 | 41 |
| TOYOTA YARIS (P9) 1.4 D-4D (NLP90) | since 08.2005 | 65 | 60 | 41 |
| TOYOTA YARIS (P9) 1.3 VVT-i (SCP90) | since 08.2005 | 55 | 48 | 41 |
| TOYOTA YARIS (P9) 1.8 VVTi (ZSP90) | since 01.2007 | 65 | 50 | 44 |
| TOYOTA YARIS (P9) 1.33 VVT-i (NSP90) | since 11.2008 | 63 | 55 | 44 |
Examples of Compatible Batteries
| Battery Specs | Battery Image |
|---|---|
Battery Brand: EXIDE Battery Code: EA530 Voltage: 12 V Battery Capacity: 53 AH Cold Cranking Amps (CCA): 540 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 5524000473132 Voltage: 12 V Battery Capacity: 52 AH Cold Cranking Amps (CCA): 470 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
Battery Brand: PLATINUM Battery Code: 159E Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 390 A Cold Cranking Amps (CCA) DIN: 54578 A Length: 238 Width: 129 Height: 225 Post Positions: 1 Terminal Type: T1 Hold-down Type: N |  |

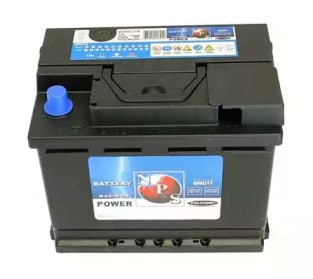

Battery Brand: NPS Battery Code: U540L31B Length: 242 Width: 174 Height: 190 Voltage: 12 V Battery Capacity: 55 AH Cold Cranking Amps (CCA) DIN: 270 A Cold Cranking Amps (CCA): 450 A |  |
Battery Brand: COMLINE Battery Code: CB012CL Hold-down Type: B3 Voltage: 12 V Cold Cranking Amps (CCA): 360 A Battery Capacity: 45 AH Post Positions: 0 Filled Weight: 11.6 kg Length: 207 Width: 175 Height: 190 |  |
Battery Brand: BOSCH Battery Code: 0 092 S5A 050 Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 680 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VARTA Battery Code: 5544000533162 Voltage: 12 V Battery Capacity: 54 AH Cold Cranking Amps (CCA): 530 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 190 |  |
Battery Brand: OPEN PARTS Battery Code: BT044L1B.00 Battery Capacity: 44 AH Voltage: 12 V Cold Cranking Amps (CCA): 360 A Length: 207 Width: 175 Height: 175 Hold-down Type: B13 Post Positions: DX |  |
Battery Brand: OPEN PARTS Battery Code: BT055L1.30 Battery Capacity: 55 AH Voltage: 12 V Cold Cranking Amps (CCA): 570 A Length: 207 Width: 175 Height: 190 Hold-down Type: B13 Post Positions: DX |  |

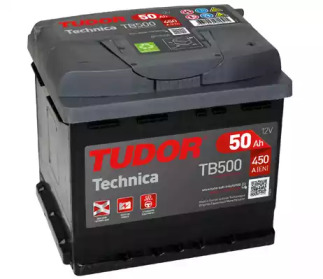

Battery Brand: TUDOR Battery Code: TB500 Voltage: 12 V Battery Capacity: 50 AH Cold Cranking Amps (CCA): 450 A Length: 207 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 5451560333132 Voltage: 12 V Battery Capacity: 45 AH Cold Cranking Amps (CCA): 330 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B00 Length: 238 Width: 129 Height: 227 |  |
Battery Brand: DETA Battery Code: DA640 Voltage: 12 V Battery Capacity: 64 AH Cold Cranking Amps (CCA): 640 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |

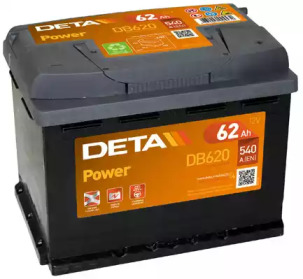

Battery Brand: DETA Battery Code: DB620 Voltage: 12 V Battery Capacity: 62 AH Cold Cranking Amps (CCA): 540 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: EN Hold-down Type: B13 |  |
Battery Brand: VARTA Battery Code: 5444020443132 Voltage: 12 V Battery Capacity: 44 AH Cold Cranking Amps (CCA): 440 A Post Positions: 0 Terminal Type: 1 Hold-down Type: B13 Length: 207 Width: 175 Height: 175 |  |
Battery Brand: BOSCH Battery Code: 0 092 S50 050 Voltage: 12 V Battery Capacity: 63 AH Cold Cranking Amps (CCA): 610 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Hold-down Type: B13 Terminal Type: 1 |  |
Battery Brand: VMF Battery Code: 54523 Voltage: 12 V Battery Capacity: 45 AH Height: 220 Width: 129 Length: 238 Cold Cranking Amps (CCA): 330 A Post Positions: 0 Hold-down Type: B00 Terminal Type: 1 |  |
Battery Brand: PLATINUM Battery Code: 027E Voltage: 12 V Battery Capacity: 60 AH Cold Cranking Amps (CCA): 540 A Cold Cranking Amps (CCA) DIN: 56019 A Length: 242 Width: 175 Height: 190 Post Positions: 0 Terminal Type: T1 Hold-down Type: B13 |  |
